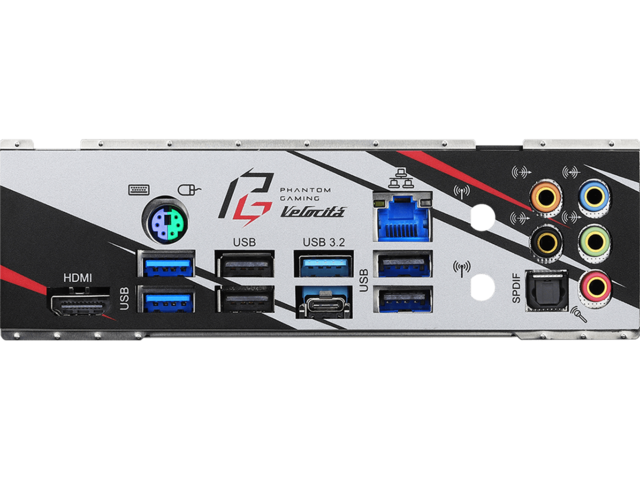

Интерфейс:

• 2 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 4 x USB 2.0 Ports (Supports ESD Protection)*
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)



Памет:

• Технология за двуканална DDR4 памет
• 4 x DDR4 DIMM слота
• Процесорите от серията AMD Ryzen поддържат DDR4 4733+(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, небуферирана памет
• Макс. капацитет на системната памет: 128GB

• Поддържа модули памет Extreme Memory Profile (XMP)

• 15μ златен контакт в DIMM слотове



Слотове за разширение:

• Процесори от серия AMD Ryzen (Vermeer и Matisse)

1. 2 x PCI Express x16 слота (PCIE1: режим Gen4x16; PCIE3: режим Gen3 x4)*

• Серия APU AMD Ryzen (Cezanne и Renoir)

1. 2 x PCI Express x16 слота (PCIE1: Gen3x16 режим; PCIE3: Gen3 x4 режим)*

• Серия APU AMD Ryzen (Picasso)

1. 2 x PCI Express x16 слота (PCIE1: режим Gen3x8; PCIE3: режим Gen3 x4)*

• 2 x PCI Express 3.0 x1 слота
• Поддържа AMD Quad CrossFireX™ ​​и CrossFireX™

1. 1 x M.2 Socket (ключ E), поддържа тип 2230 WiFi/BT PCIe WiFi модул
2. 15μ златен контакт във VGA PCIe слот (PCIE1)



Съхранение:

• 6 x SATA3 6.0 Gb/s конектора, поддържащи RAID (RAID 0, RAID 1 и RAID 10), NCQ, AHCI и Hot Plug
• 1 x Hyper M.2 Socket (M2_1), поддържа M Key тип 2230/2242/2260/2280 M.2 PCI Express модул до Gen4x4 (64 Gb/s) (с Vermeer, Matisse) или Gen3x4 (32 Gb/ s) (със Сезан, Реноар и Пикасо)**
• 1 x M.2 Socket (M2_2), поддържа M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x2 (16 Gb/s)



Конектори:

• 1 x SPI TPM Header

• 1 x Power LED and Speaker Header

• 2 x RGB LED Headers*

• 2 x Addressable LED Headers**

• 1 x CPU Fan Connector (4-pin)

• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

• 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

• 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

• 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

• 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

• 1 x Dr. Debug with LED

• 1 x Power Button with LED

• 1 x Reset Button with LED
